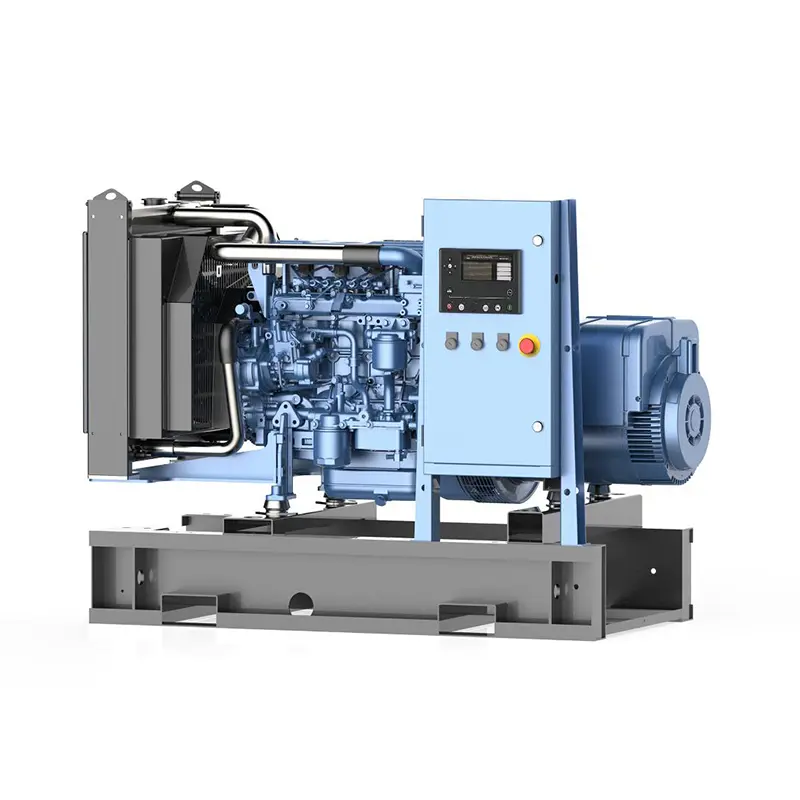

Weichai Diesel Generator Set Reliable Power Solution WPG55F1 Prp 40kw/50kVA

The Weichai WP2.3D53E210 boasts a cast iron gantry structure block, ensuring durability and stability under heavy loads. Its one-piece forged crankshaft and cast iron cylinder head, combined with a wet liner design, enhance the engine's longevity. The aluminum alloy piston, featuring an oil cooling groove, contributes to efficient thermal management. The closed water cooling system, complete with a belt-driven coolant pump and push fan, ensures consistent performance even in challenging environments, while the high-pressure common rail injection system optimizes fuel efficiency and power output.

This generator is equipped with a brushless, four-pole alternator designed for reliability and efficiency. With an IP23 waterproof rating and H-class insulation, it is built to withstand harsh conditions. The stator's 2/3 pole wind winding reduces resistance, enhancing performance. The direct coupling via a flexible disc allows for seamless operation, while the continuous overcurrent capability exceeding 300% for 10 seconds ensures that the generator can handle sudden power demands without compromising performance.

The DSE control module integrated into the Weichai WP2.3D53E210 offers comprehensive management and monitoring capabilities. Featuring a backlit LCD display, it provides real-time status messages and automatic shutdown in case of protection faults. The module monitors critical parameters such as speed, frequency, voltage, current, oil pressure, coolant temperature, and fuel level, ensuring optimal operation. Additionally, the built-in timer aids in maintenance scheduling, making it easier to keep the generator running smoothly and efficiently.
