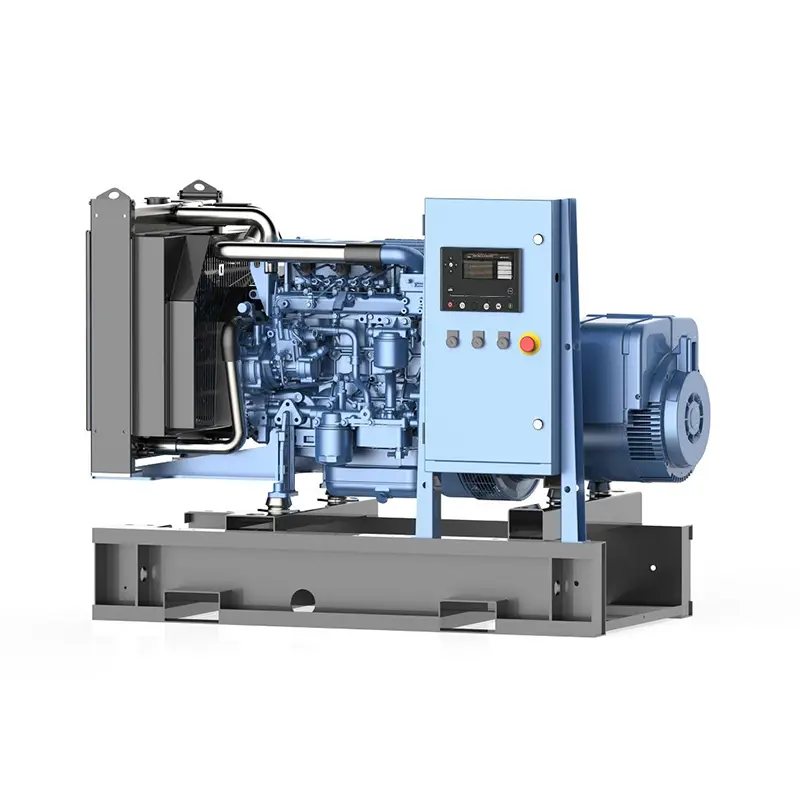

Prp30kw/38kVA, 400V/230V, 50Hz, Open Frame Large Generator Sets, Weichai WPG41F1

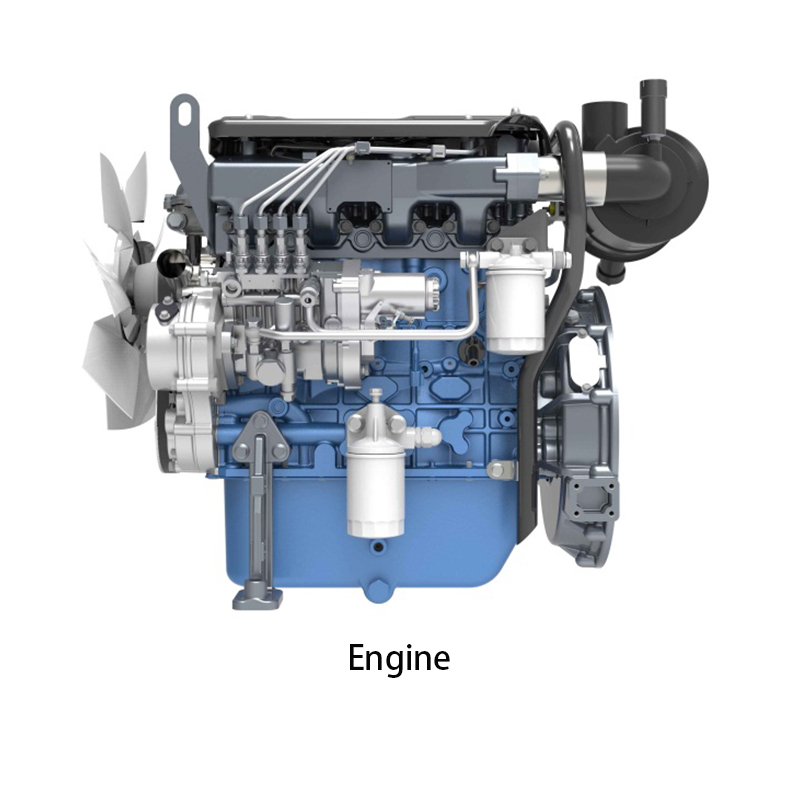

At the heart of the WPG41*1 is a powerful engine featuring a cast iron gantry type structure block, ensuring exceptional durability and stability. The one-piece forged crankshaft and separate cast iron cylinder heads, combined with wet liners, enhance the engine's performance and longevity. The aluminum alloy pistons, equipped with an oil cooling gallery, further optimize efficiency and reduce wear. This robust engine design guarantees reliable operation, even under the most demanding conditions.

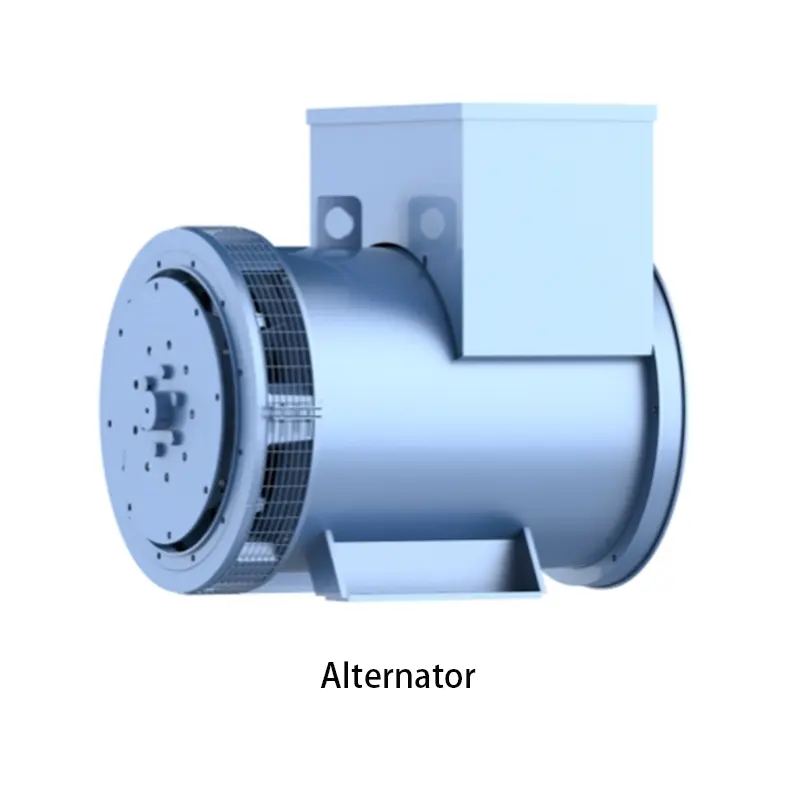

The generator is equipped with a brushless, 4-pole dynamo featuring an IP23 drip-proof rotating field design. With H-class insulation and a low reactance design, the dynamo ensures high efficiency and minimal energy loss. The continuous overcurrent capability of up to 300% for 10 seconds allows for handling sudden power surges, while the direct drive centrifugal blower cooling system maintains optimal operating temperatures, ensuring consistent performance.

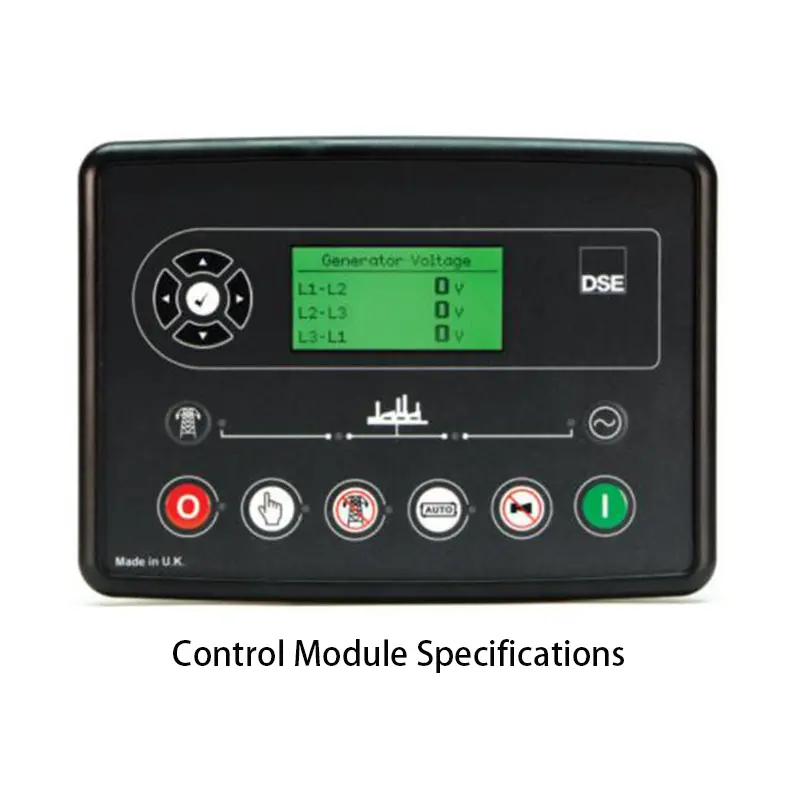

The WPG41*1 comes with a state-of-the-art module controller featuring a backlit LCD display for easy monitoring. This advanced system provides real-time data on speed, frequency, voltage, current, oil pressure, coolant temperature, and fuel level. It also displays warning, shutdown, and engine status messages, ensuring users are always informed. The integrated hour counter allows for precise monitoring and maintenance scheduling, making the WPG28*1 a smart choice for those seeking reliability and efficiency in their power solutions.
