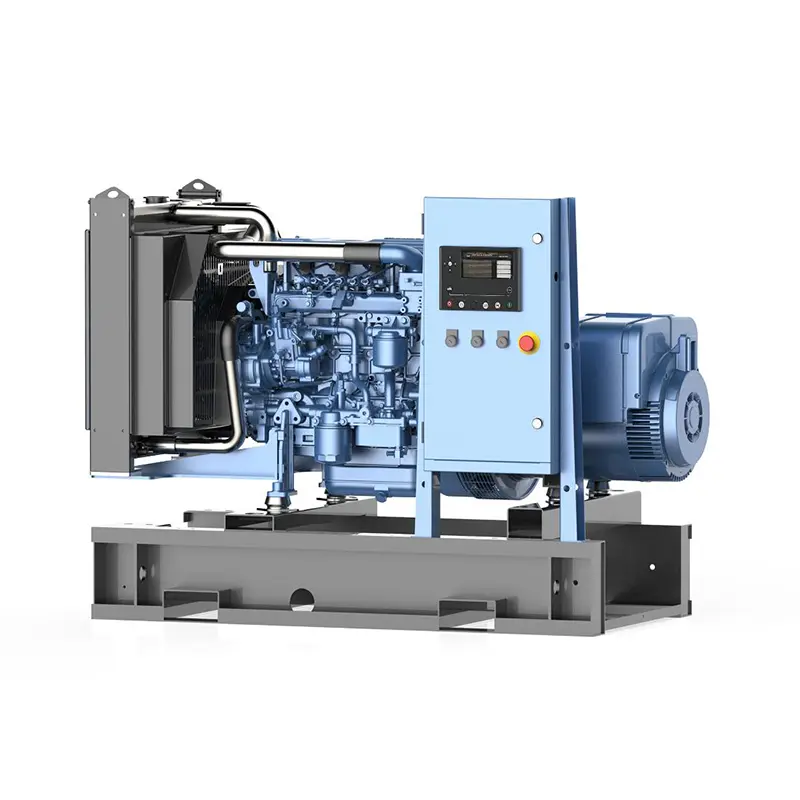

Open Frame Large Generator Sets WPG22F1 400V/230V, Weichai Factory Direct

The WPG22*1 is equipped with a Weichai WP2.3 series 4-cylinder, inline 4-stroke, radiator-cooled engine, ensuring excellent performance. It features a well-designed air handling system with a dry, replaceable paper element air filter and restriction indicator. An air-to-air aftercooling system and an optimized turbocharger enhance high-altitude capabilities. The fuel system features A1-class electronic speed regulation and intelligent fuel injection technology for fast starting and efficient operation. Equipped with an electric starter motor, 1 x 12V DC battery and battery charging alternator.

The generator set features a brushless, screen-protected, rotating field alternator designed for self-excited performance. It meets IS/IEC standards and provides best-in-class efficiency. It features a rugged steel housing and sealed bearings to ensure longer life and less maintenance. The IP23 standard protection rating protects against environmental factors, while impregnation on all winding parts enhances mechanical strength to ensure reliable power generation.

Equipped with the Deep-sea DSE 6120 MKIII automatic power failure control module, it provides advanced monitoring and control. Its backlit LCD display provides real-time information, including three-phase generator and power supply monitoring. It tracks speed, frequency, voltage, current, oil pressure, coolant temperature, and fuel level. The module displays warning, shutdown, and engine status information. An integrated hour counter provides accurate operating data for monitoring and maintenance, ensuring optimal performance of the generator.
